ジュラテックRB26 スペシャルメタルガスケット JURATECH RB26 special metal gasket

ジュラテックRB26 スペシャルメタルガスケット JURATECH RB26 special metal gasket

¥36,300

*Tax included.

*Additional shipping charges may apply, See detail..

About shipping fees

The shipping fee for this item varies by the shipping method.
  • 着払い発送

    宅急便サイズ→クロネコヤマト
    大型荷物→第一貨物

    Shipping Fees are the same all over country inside Japan ¥0

I would like to be notified of restocking

Age verification

When it is restocked, we will notify you to the registered e-mail address.

Mail Address

Please allow the domains 「thebase.in」&「rizejapan.com」so that you can receive our e-mail

I would like to be notified of restocking

Notice of restocking has been accepted.

We've sent an e-mail to you.
If you cannot find the mail, please check your spam folder.
When receiving a notification, you may not be able to receive it due to reasons such as the mail server capacity being exceeded. Please confirm it.

Please allow the domains 「thebase.in」&「rizejapan.com」so that you can receive our e-mail

RB26用SPLメタルヘッドガスケットをジュラテックオリジナルで作りました!

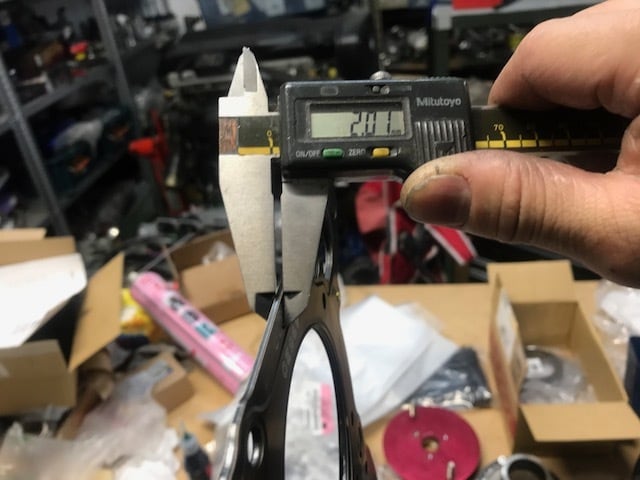

厚み1.0~2.0ミリでボアは87パイ~89.5パイまで指定できます。
何がSPLかと言うと、中板に折り返しがあり面圧が高いのはターボ用なので当たり前!
そうじゃなくて、現在どのメーカーも廃盤の2ミリ厚です、厚いガスケットでロー
コンプのゼロヨン仕様なんか最近は流行らないから2ミリは需要が無く廃盤に
なったんだと思います。
しか~し!、何回もブローしてヘッド溶かして、何回も面研して再利用で薄
くなり過ぎた使えないヘッドをもう一度使う場合にと思い制作しました!
ヘッド加工に凄い手間が掛かったヘッドは簡単に捨てれま
せん、エンジンやってるとこならこの気持ち分かりますよね!

さらにSPLは幻の88パイピストンが組めるボアの89.5パイです!、でも本当はス
キッシュ削りすぎて普通のガスケットではシール出来ないヘッドでもシールさせる
為に89.5パイにしました、それとノッキングでプツプツになった外をシールする為
でもあります
レースエンジンではピストン径からプラス1パイぐらいのガスケットを選ぶの
が普通ですが、現在RB26ヘッドが高価で、中古相場も高いです、使えな
いヘッドでも、このガスケットで再利用しないとランニングコストが掛かるサ
ーキットなんか走れないですよ、そう言う考えでこのサイズを小ロットで特注制作しましたよ。

I made SPL metal head gasket for RB26 with DURATEC original!
The thickness is 1.0 to 2.0 mm and the bore can be specified from 87 to 89.5 pies.
Speaking of what is SPL, it is natural that the center plate has a fold and high surface pressure because it is for turbo!
Instead, the 2mm thickness that is currently out of production by any manufacturer is a low-profile gasket with a thick gasket.
There is no demand for 2mm because the zero-yong specification of the compressor is not popular these days, so it is discontinued
I think it happened.
Only! , Blow many times, melt the head, grind the surface many times and reuse it to make it thin.
I made it when I want to use the head that has become too worn and cannot be used again!
Heads that take a lot of time and effort to process are easily discarded.
Well, if you're working on engines, you know how I feel!

In addition, the SPL is an 89.5 pie with a bore that can be assembled with a phantom 88 pie piston! , but really
Seals even a head that is too sharpened to seal with an ordinary gasket
I made it 89.5 pie for that purpose, and to seal the outside that became popped due to knocking.
There is also
For a race engine, choose a gasket that is about one pie larger than the piston diameter.
is normal, but the RB26 head is currently expensive, and the second-hand market is also high, so it cannot be used.
Even if the head is not used, running costs will be incurred unless reused with this gasket.
- Kits can't run, so I made a special order for this size in small lots.
